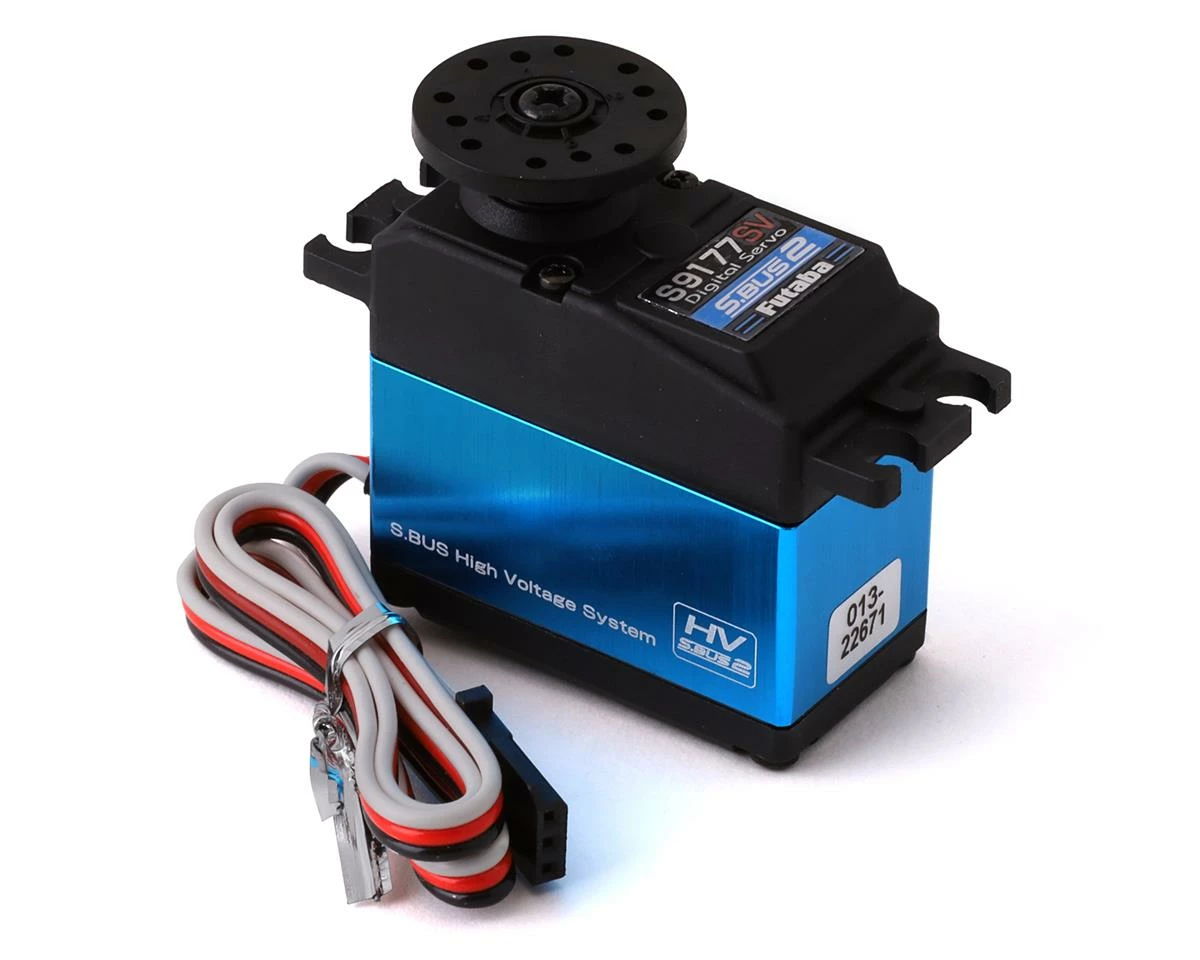

FUTABA S9177SV S.Bus Programmable Airplane Servo (High Voltage)

Futaba S9177SV S.Bus Programmable Airplane Servo.

Features:

• For airplane use
• Dual ball bearing output
• Metal gears
• May be connected to a PC by using the CIU-2 USB adapter (FUTM0951)
• not included, separate purchase required
• May be used in SBus and SBus 2 ports
• Aluminum center case for efficient heat dissipation
• One year warranty through Hobby Services beginning at date of purchase

NOTE: While this servo lists 6.0V specs, the packaging states “No Dry Battery Use”, indicating that they recommend Lithium battery operation only.

Specifications:

• Torque
• @6.0V: 466 oz-in (33.6 kg-cm)
• @6.6V: 512 oz-in (36.8 kg-cm)
• @7.4V: 569 oz-in (41 kg-cm)
• Speed
• @6.0V: 0.13 sec/60°
• @6.6V: 0.12 sec/60°
• @7.4V: 0.11 sec/60°
• Dimensions: 1-5/8 x 13/16 x 1-1/2″ (41x21x37mm)
• Weight: 2.6 oz (79 g)

SBus Programmable Defaults
Dead Band Degree: 0.36
Damper Factor: 144
Stretcher Gain: 1
Boost: 5
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Hold
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off
Soft Start: 3.0

This product was added to our catalog on May 5, 2017
