CRATCH & DENT: MKS Servos DS450 Metal Gear Micro Digital Servo

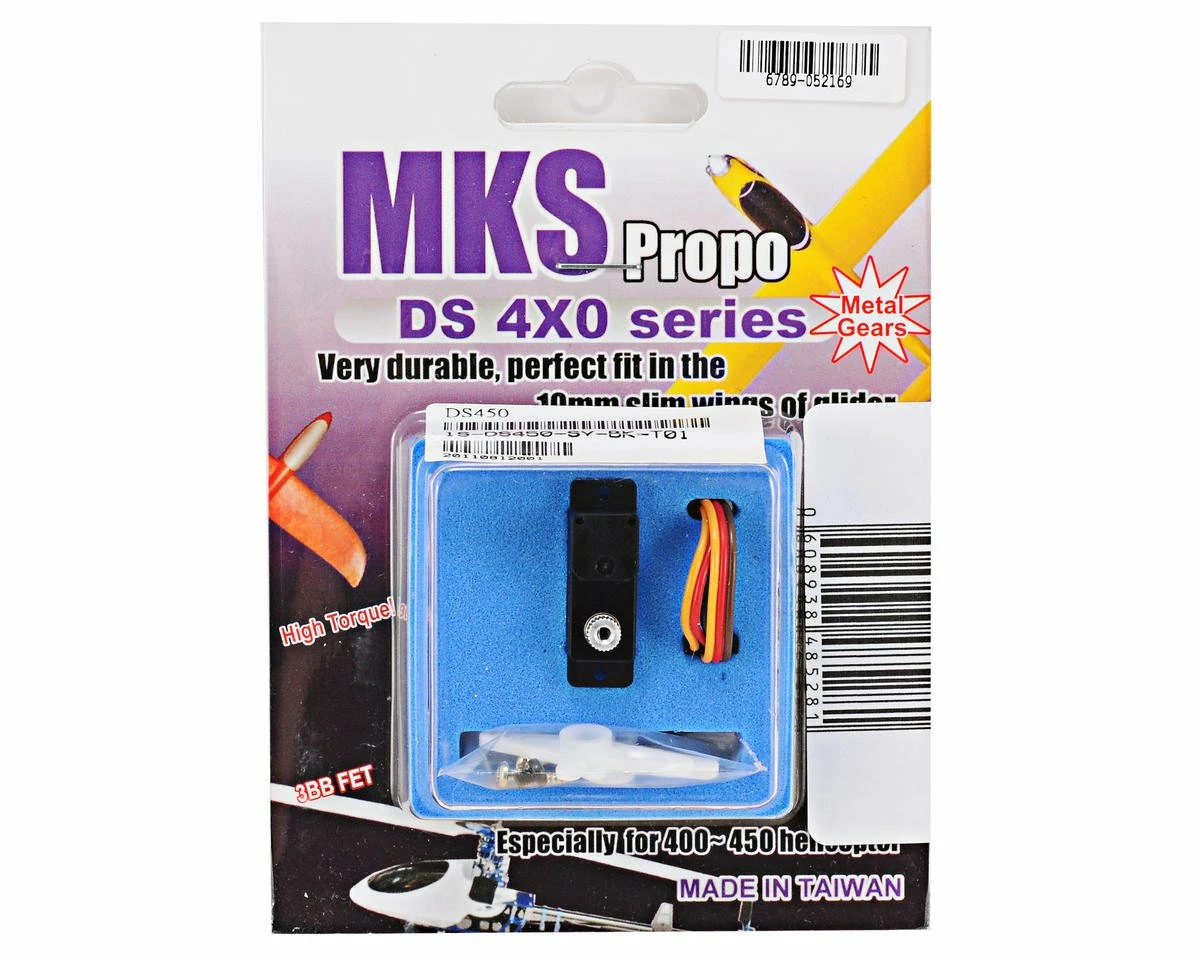

SCRATCH & DENT: Packaging is damaged; product is new/unused and repackaged
Sold as is, photo of product may not be an accurate representation of product condition. ALL SALES ARE FINAL.

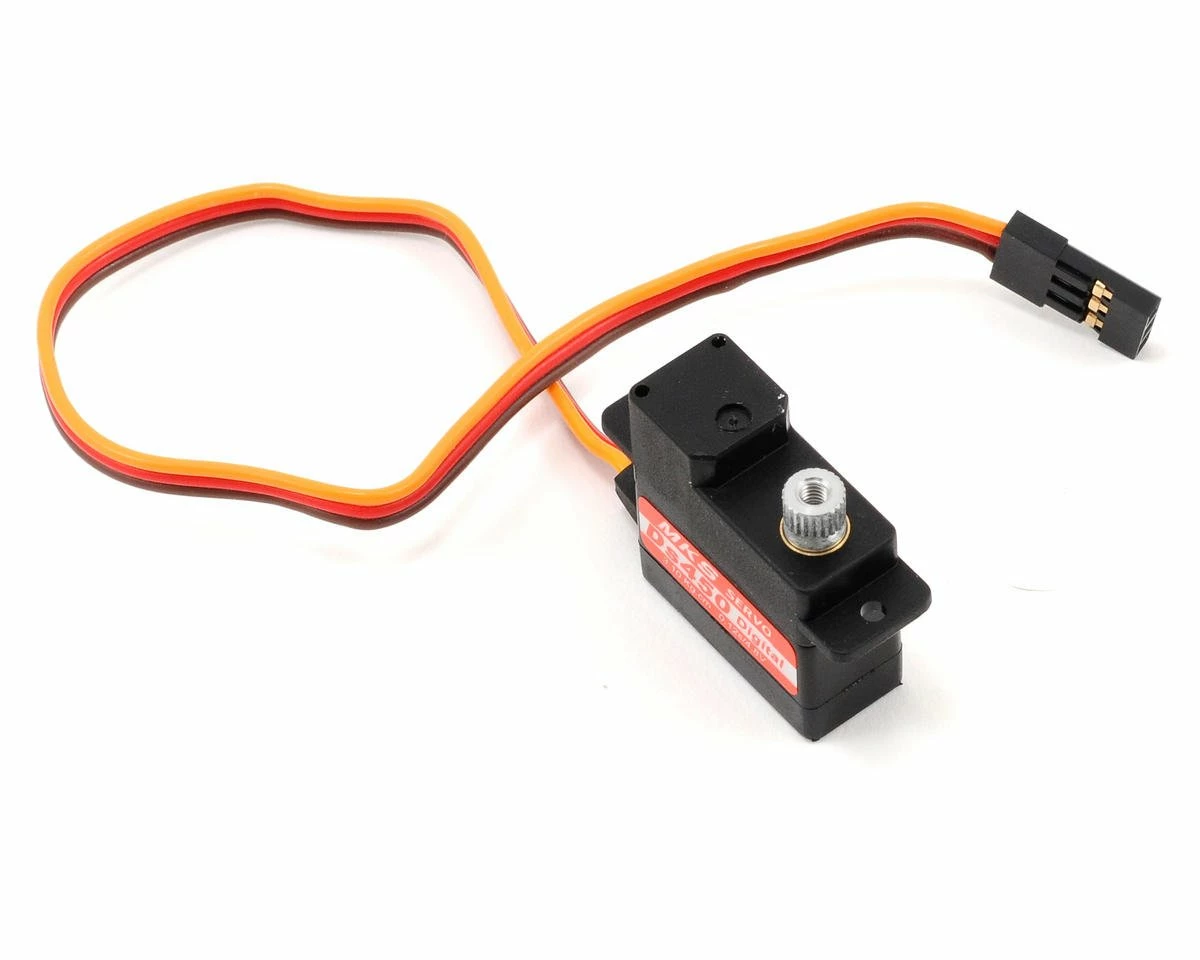

This is the MKS DS450 Metal Gear Micro Digital Servo.

Specifications:
Dead Band: 0.002ms (Default)
Control System: +Pulse Width Control
Working frequency: 1520μs / 333hz
(RX) Required Pulse: 3.0 ~ 5.0 Volt Peak to Peak Square Wave
Operating Voltage: 4.8 ~ 5.0 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (4.8V): 0.120 sec/60° degrees at no load
Operating Speed (5.0V): 0.115 sec/60° degrees at no load
Stall Torque (4.8V): 43.0 oz/in (3.10 kg.cm)
Stall Torque (5.0V): 44.7 oz/in (3.22 kg.cm)
360° Modifiable: YES
Motor Type: Coreless Motor
Potentiometer Drive: Indirect Drive
Driver Type: FET
Bearing Type: 2 Jewel Bearing + 1 Bronze Bushing
Gear Type: Metal + Aluminum-magnesium alloy Gears
Programmable: YES
Connector Wire Length: 19.0cm (7.5″)
Dimensions: 22.5x10x23.5mm (0.89×0.39×0.93″)
Weight: 9.5g (0.335 oz)

NOTE: Use with 4 cell Nicd/NiMH battery or use UBEC (4.8V~5.0V)
