Sale!

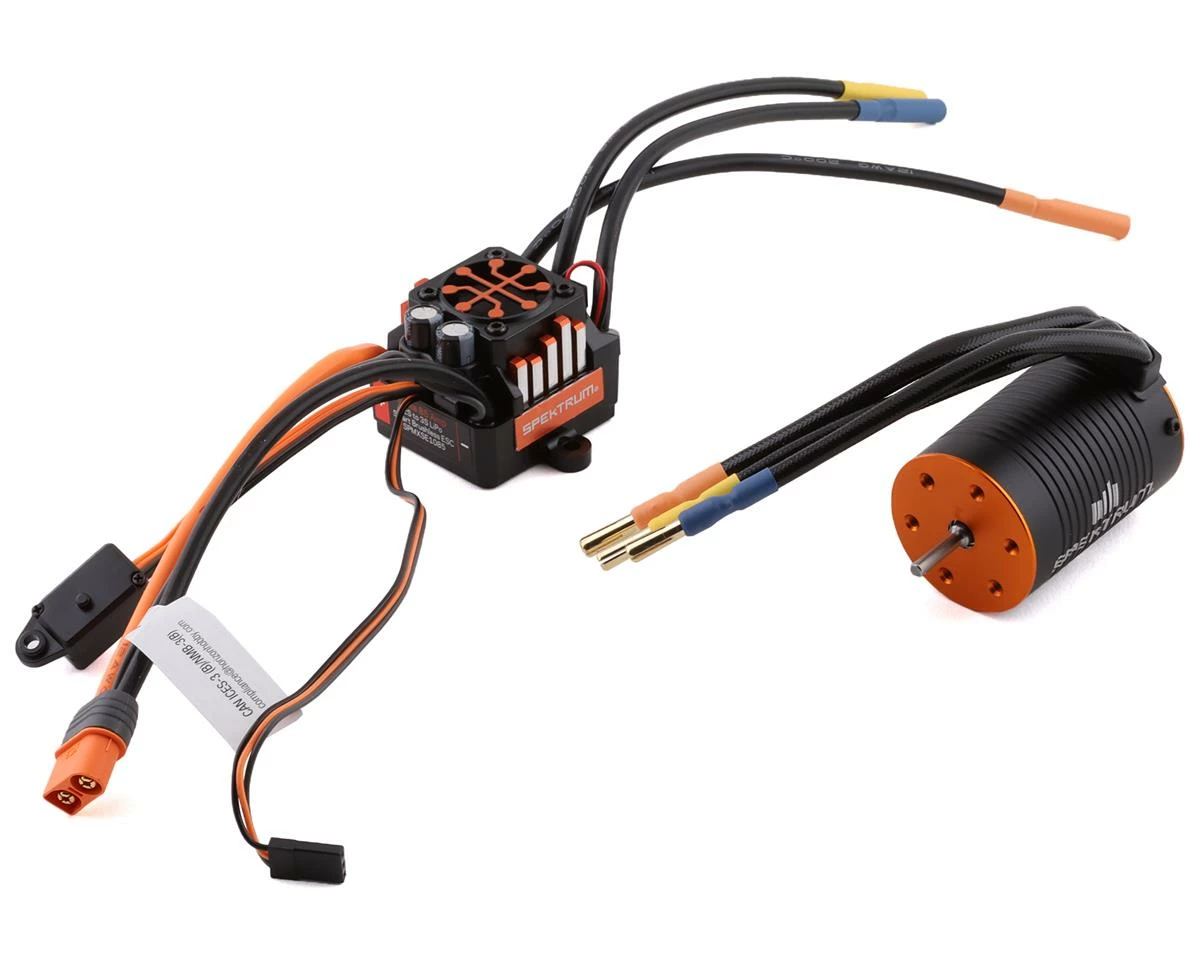

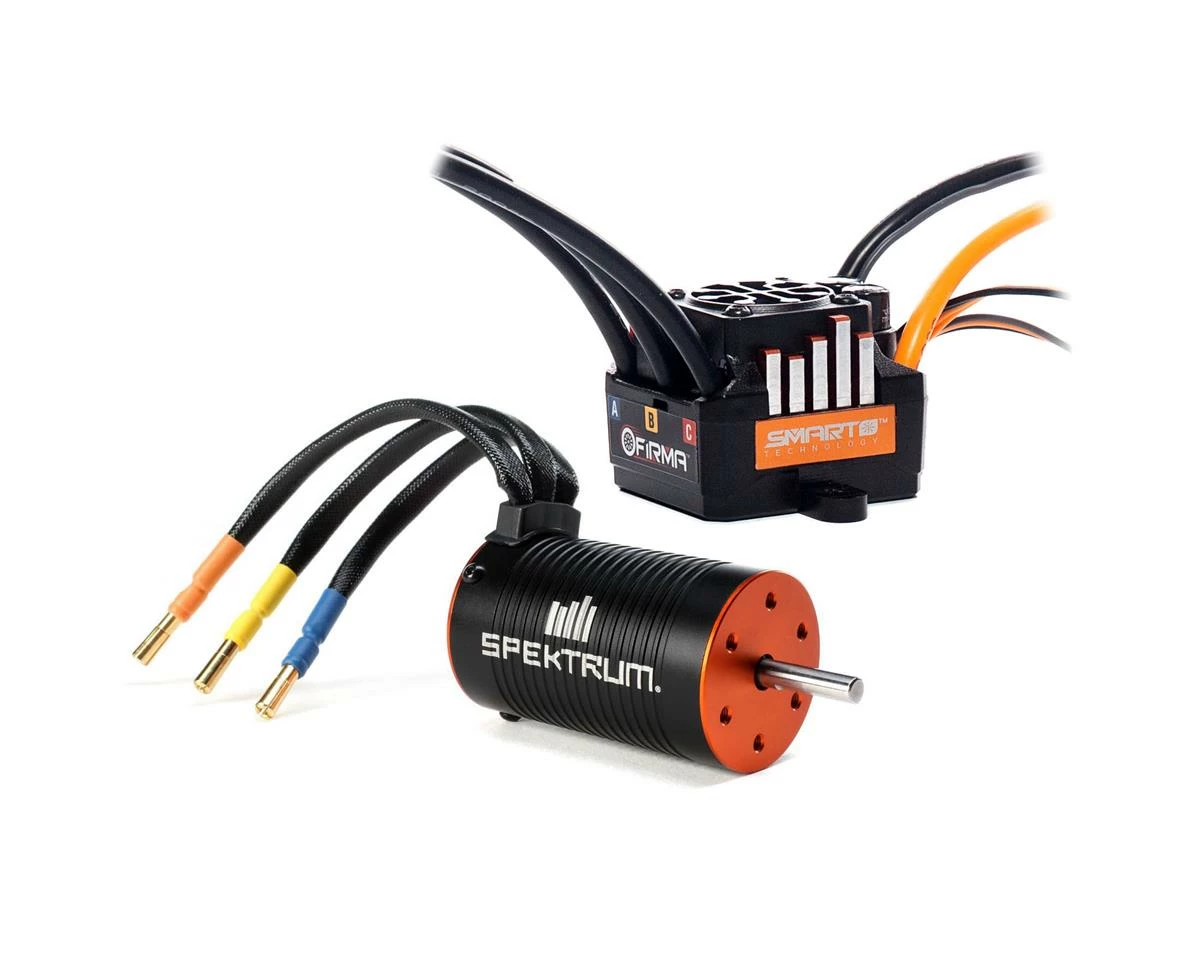

Spektrum RC Firma 85 Amp Sensorless Brushless Smart ESC & Motor Combo (4000Kv)
Original price was: $104.99.$73.49Current price is: $73.49.
- Your questions, our prompt answers.
- Excellent customer service online in a timely manner
- Discover a world of quality products.
- No Compromise on Quality

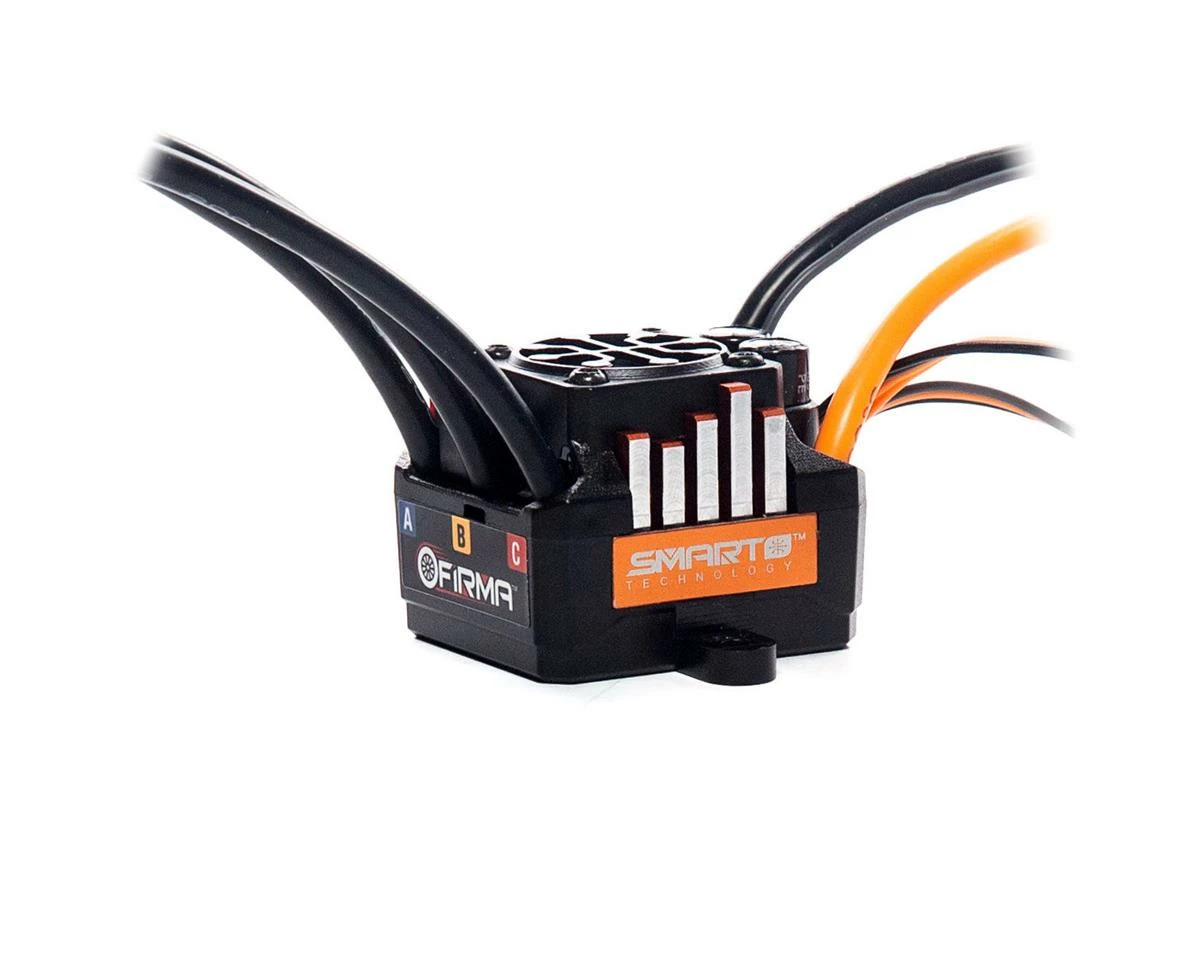

This Spektrum RC Firma 85A Smart ESC & Motor Combo for surface vehicles is waterproof and delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection. Now includes a compatible 4000Kv Firma Brushless Sensorless motor when you purchase this combo.
Features:
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrumâ„¢ engineers, in partnership with the industry’s leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant ICâ„¢ connectors, backwards compatible with ECâ„¢ connectors
- Limited 1-year warranty
Specifications:
Time Delay Brake: Yes
BEC Voltage: 6V (4A)
Forward: Yes
Weight: 80g (2.8 oz)
Continuous Maximum Current: 85A (760A Max Burst)

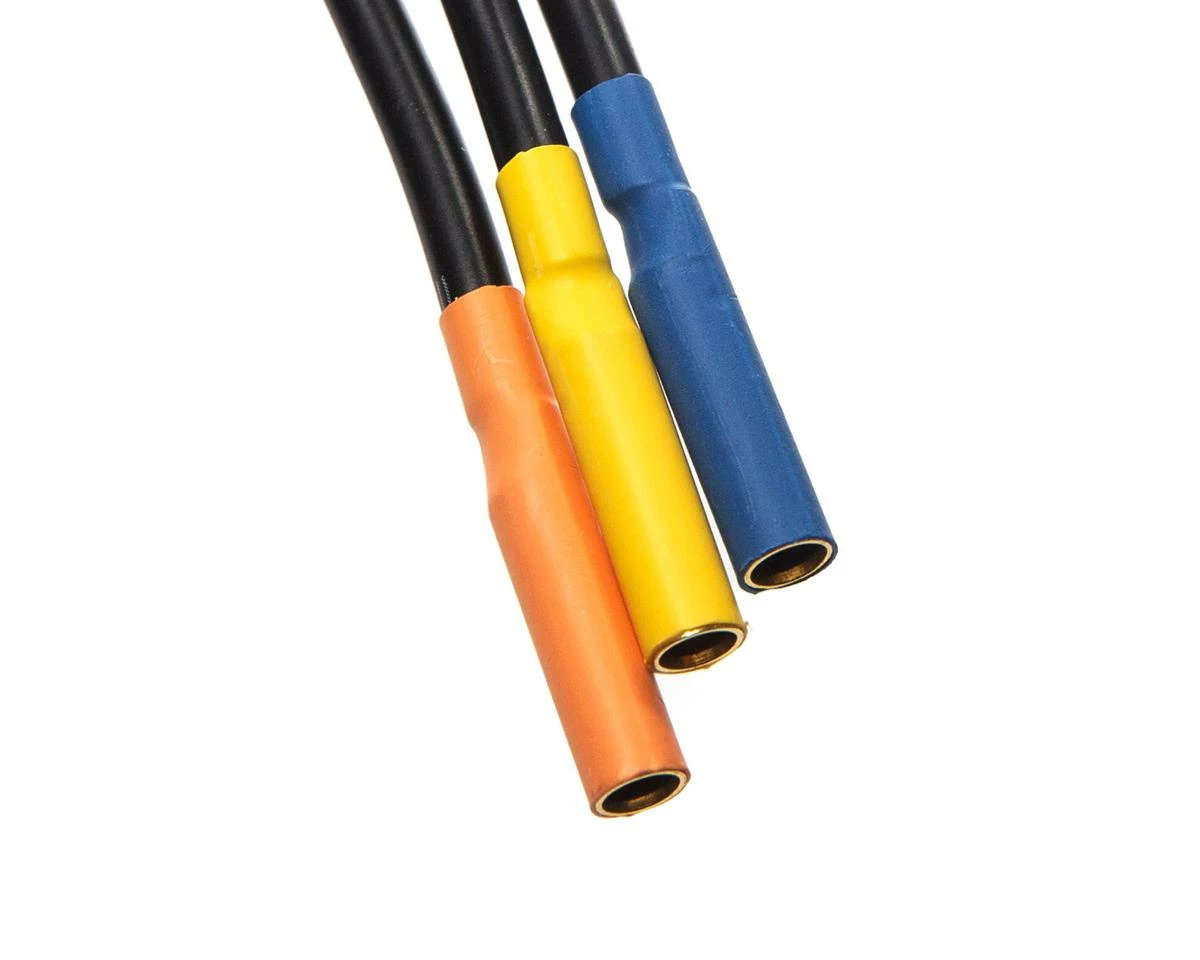

Output Connector Types:Â 4.0mm Female Bullet with 12AWG, 150mm wire
Reverse: Yes
Input Connector Types: IC3 with 12AWG, 160mm wire
Width:Â 1.4 (37mm)
Height: 1.5in (38mm)
Brake: Yes
Input Voltage: 7.4 – 14.8V
Length: 2.2in (57mm)
Width:1 .4 (37mm)
Height: 1.5in (38mm)
Weight :80g (2.8 oz)
BEC Voltage:Â 6V (4A)

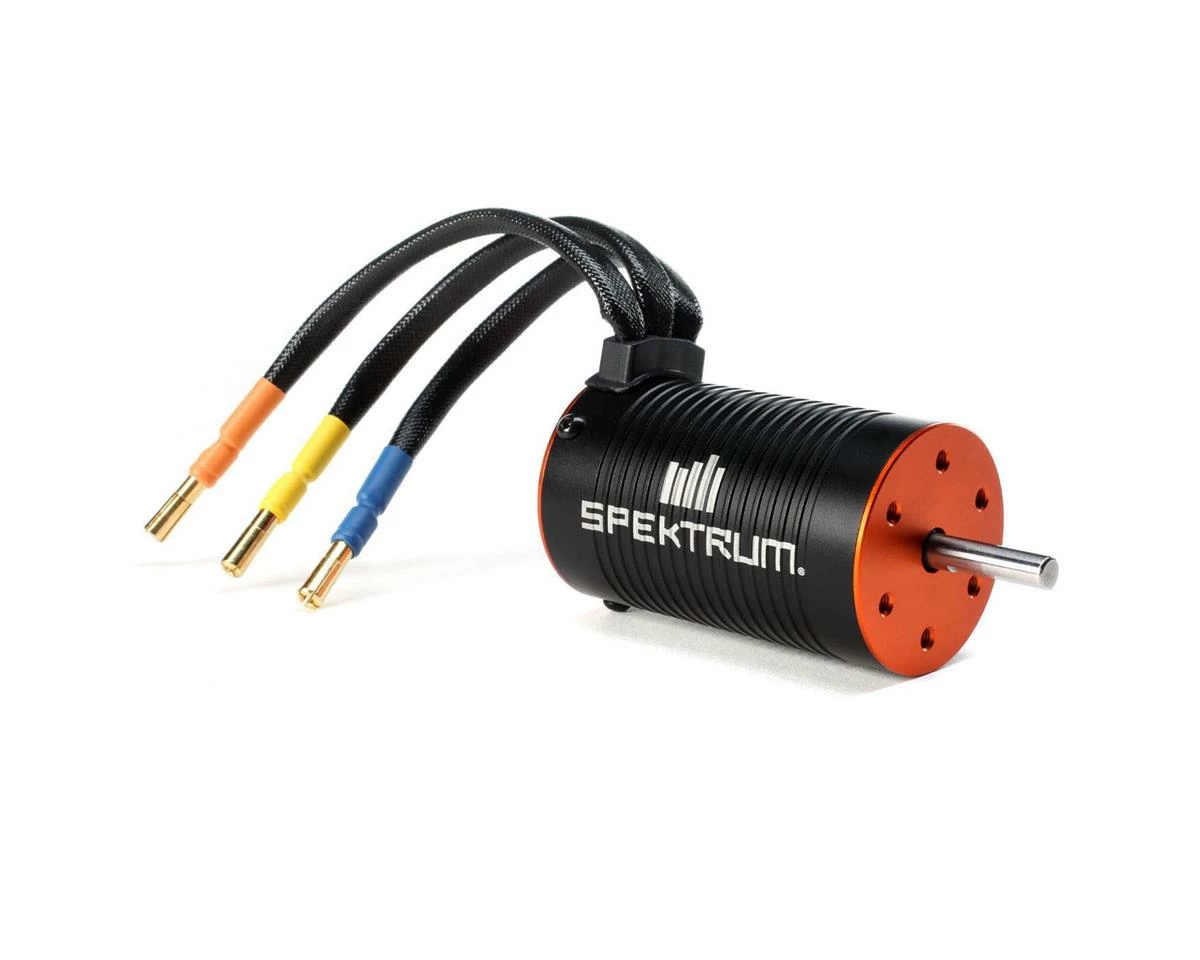

Motor Specifications:
Width:1 .4 (37mm)
Height: 1.5in (38mm)
Weight :80g (2.8 oz)
BEC Voltage:Â 6V (4A)
Motor Specifications:
Application:Â 1/10 scale 4WD, 2WD, and on-road models running on 2S LiPo power
Bushing Or Bearing:Â Bearing
Connector Type:Â 4mm Bullet
Efficiency:Â 81%
Input Voltage:Â 6-8.4V
Maximum Continuous Current:Â 40A
Motor Design:Â Inrunner
Motor Size:Â 3652
Motor Type:Â Brushless – Sensorless
Number of Poles:Â 4
Product Weight:Â 7.4oz (210g)
RPM/Volt (Kv):Â 4000Kv
Shaft Diameter:Â 0.125″ (3 mm)
Wire Gauge:Â 12 AWG
Includes:
- (1) Spektrumâ„¢ Firmaâ„¢ Smart ESC
- (1) Spektrum Smart sticker sheet
- (1) Product Manual
This product was added to our catalog on January 28, 2021
