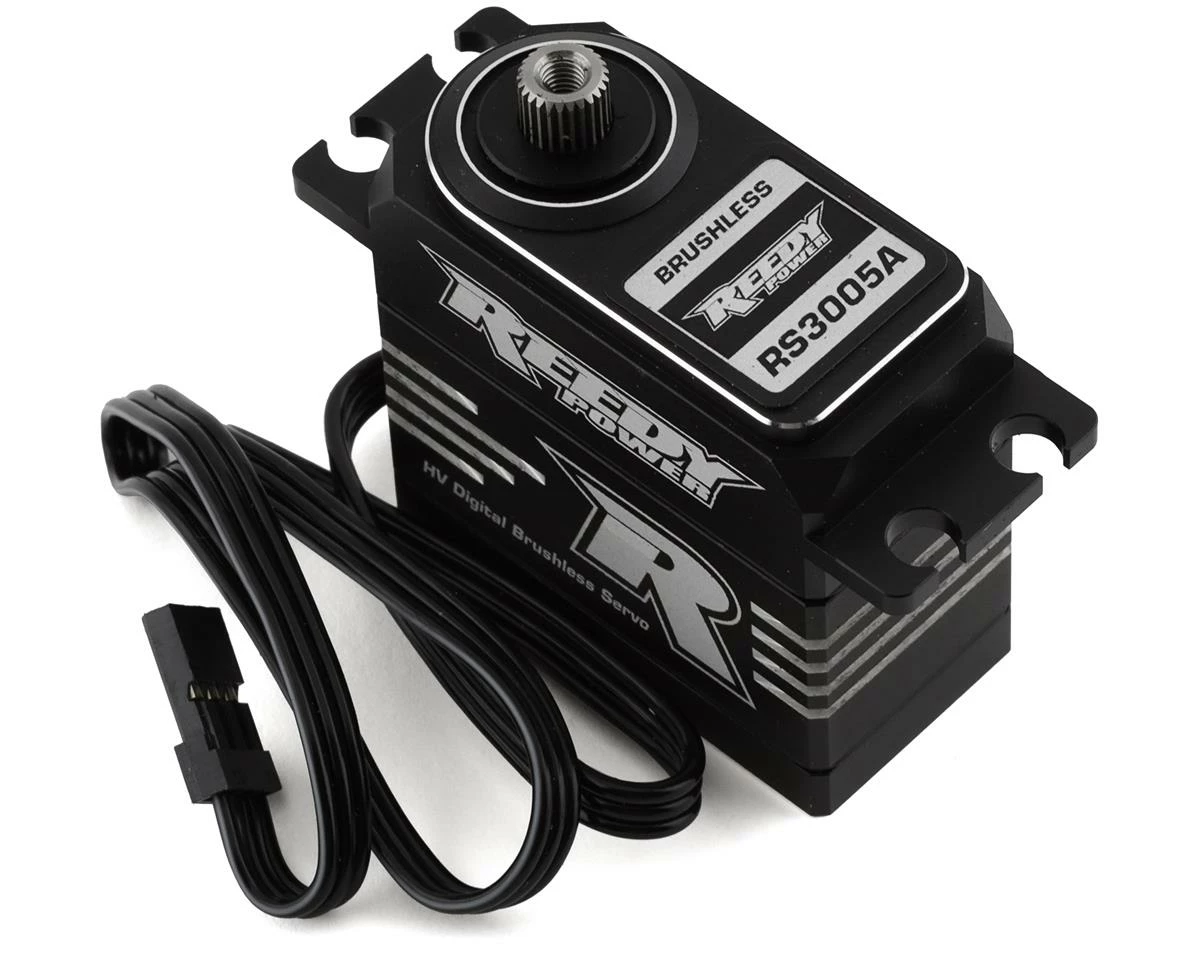

Reedy RT3005A Digital Aluminum Hi-Speed Brushless Servo (High Voltage)

The Reedy RT3005A Digital Aluminum Hi-Speed Brushless Servo is a race proven option that features numerous improvements over previous Reedy servos. These enhancements includes precision metal gears for added strength and smooth operation, a powerful brushless motor for lightning-quick speeds and maximum torque, and an advanced microprocessor that improves vehicle control. Its state-of-the-art CNC-machined aluminum case increases rigidity while lowering operating temperatures for fade-free operation.

• Water and dust resistant
• Full aluminum case
• Powerful brushless motor
• Ultra-precise metal gears
• Dual ball bearings
• High-voltage compatible

• Input: 6.0 – 8.4V
• Speed (sec/60°):
• @6.0V: 0.076
• @7.4V: 0.060
• @8.4V: 0.055
• Torque:
• @6.0V: 298.57 oz-in (21.5 kg-cm)
• @7.4V: 347.18 oz-in (25.0 kg-cm)
• @8.4V: 416.62 oz-in (30.0 kg-cm)
• Dimensions: 40x20x39.3mm
• Weight: 75g
• Spline: 25T
