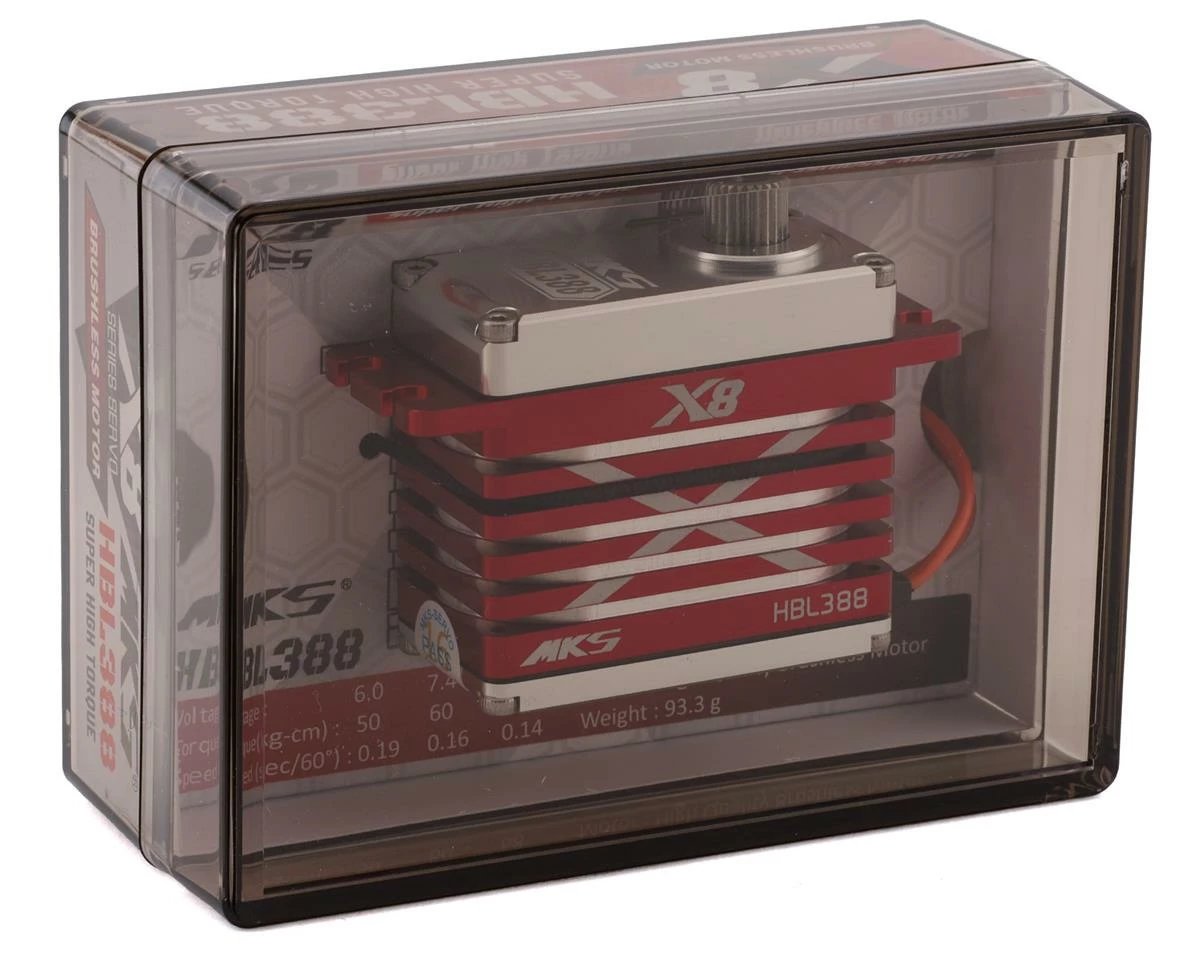

MKS Servos X8 HBL388 Brushless Metal Gear High Torque Digital Servo

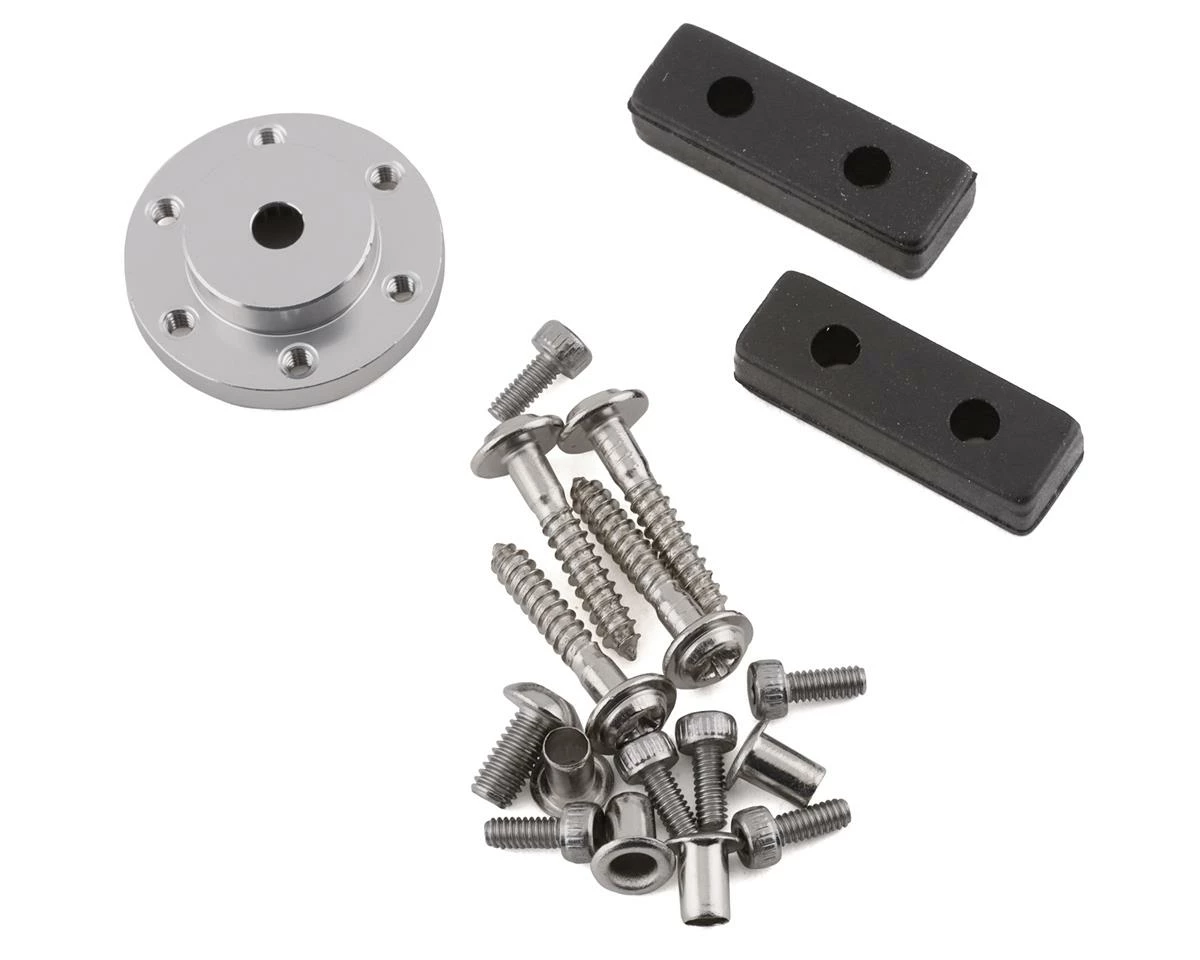

The MKS X8 HBL388 Brushless Metal Gear High Torque Digital Servo is perfect for large scale airplanes, jets, helicopter cyclic or surface vehicles. Package includes one servo and mounting hardware.

Features:

• Uses Pulse Width Control (PWM)
• Japanese High Quality Brushless Motor
• 8mm 25tooth X8
• Great for large scale airplanes, jets, helicopter cyclic or surface vehicles

Specifications:

• Voltage: 5-8.4 Volts
• Torque:
• 6V: 694.3 oz/in (50 kg/cm)
• 7.4V: 833.2 oz/in (60 kg/cm)
• 8.4V: 944.3 oz/in (68 kg/cm)
• Speed
• 6V: 0.19 sec/60°
• 7.4V: 0.16 sec/60°
• 8.4V: 0.14 sec/60°
• Dimensions: 43x22x39.65mm
• Weight: 93.3g (3.29 oz)
• Working Frequency: 1520us / 333Hz
• Dead Band: 0.0008ms (Default)
• Temperature Range: -10 to + 60 Degree C
• Bearing: 12x8mm Double bearings
• Gear: Metal Alloy Gear

This product was added to our catalog on December 31, 2021
