MKS Servos BLS990 Brushless Ti-Gear Ultra Speed Digital Tail Servo W/Aluminum Case

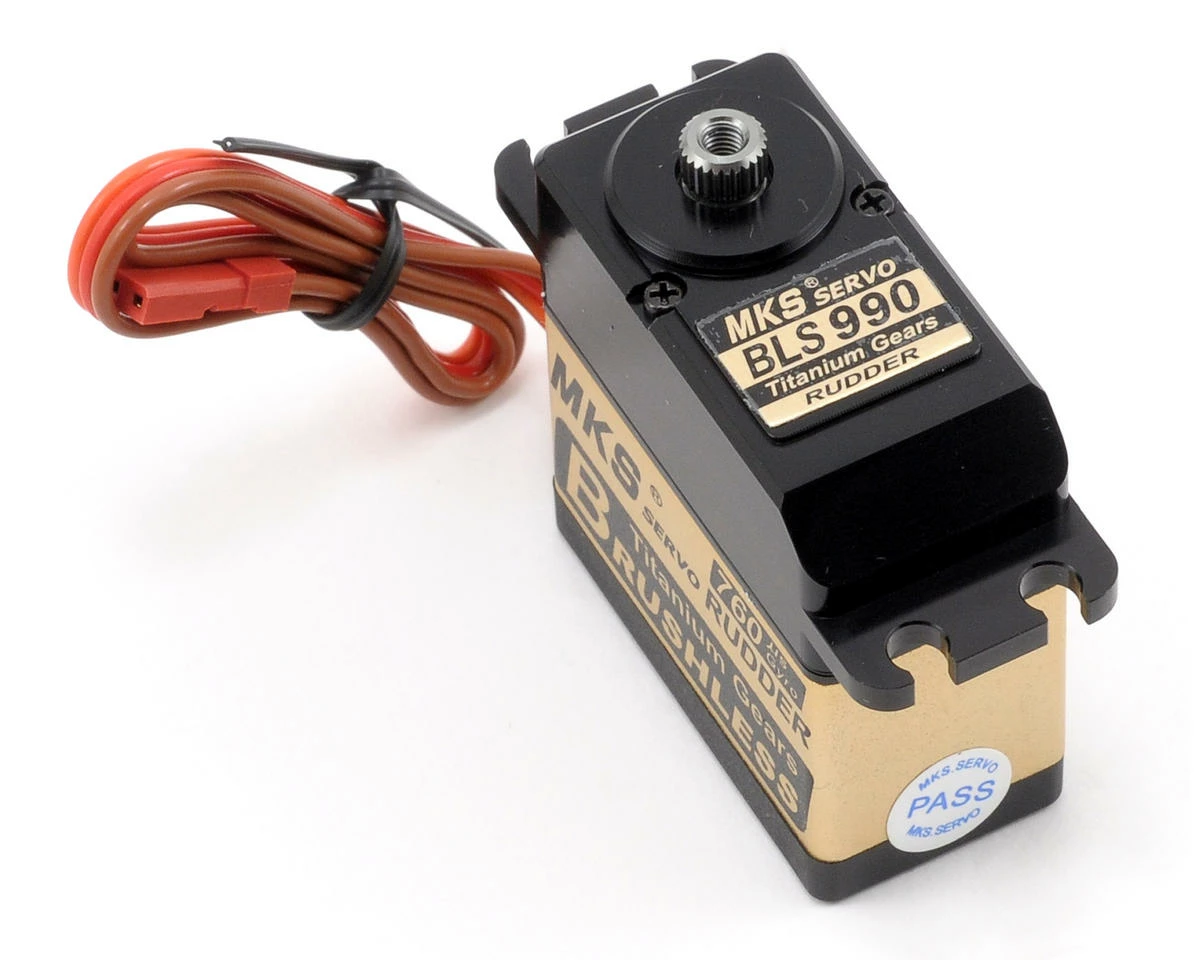

This is the MKS BLS990 Brushless Titanium Gear Ultra Speed Digital Tail Servo.

BLS990 (Narrow Band) Specifications:

• Dead band: 0.0004ms (Default)
• Control System: +Pulse Width Control
• Working frequency: 760μs/560Hz
• (RX) Required Pulse: 3.0~5.0 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8~6.0V DC
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed (4.8V): 0.038 sec/60° degrees at no load
• Operating Speed (6V): 0.030 sec/60° degrees at no load
• Stall Torque (4.8V): 38.9 oz/in (2.8 kg-cm)
• Stall Torque (6V): 48.6 oz/in (3.5 kg-cm)
• 360° Modifiable: NO
• Motor Type: Brushless
• Potentiometer Drive: Indirect Drive
• Driver Type: FET
• Bearing Type: Dual Ball Bearings
• Gear Type: Titanium Gears
• Programmable: NO
• Connector Wire Length: 24cm (9.4″)
• Dimensions: 40x20x40mm
• Weight: 69g ( 2.43oz)
