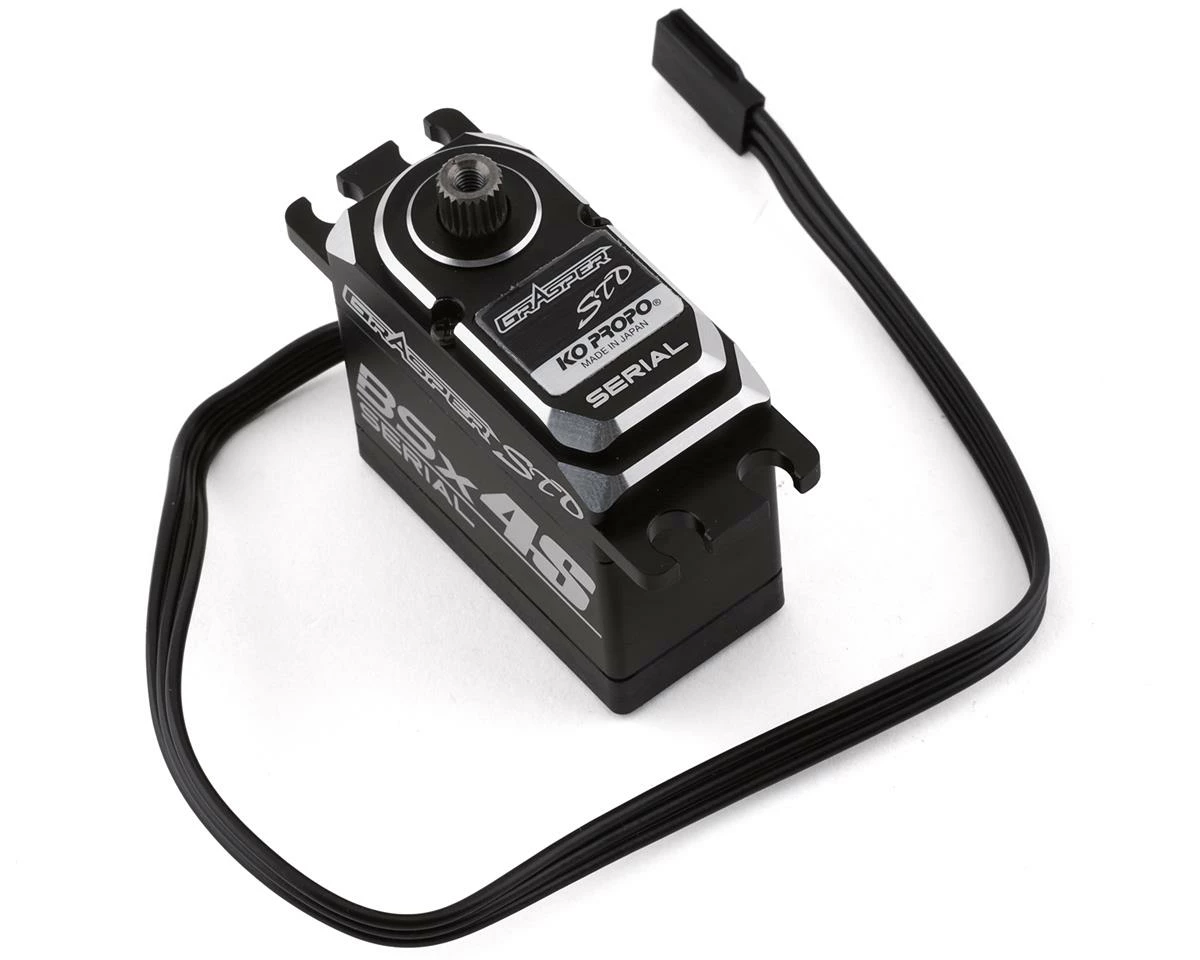

KO Propo BSx4S “Grasper STD” High Speed Brushless Servo W/Selector4s (High Voltage)

By supporting serial you get Ultra-high-speed communication that results in improved response. In serial communication, the communication interval can be significantly shortened compared to the PWM method, and the interval from command to operation is greatly reduced. By combining this servo with EX-NEXT’s XT mode, KO Propo achieved an unprecedented ultra-fast response as if you were in the drivers seat. Radios equipped with “EX-NEXT” (KOP10661), can make adjustments through the radio. “REAL TIME ICS” can be used by connecting the Grasper2 to the B/S port found on the KR-420XT (KOP21013) receiver.

Added “Frequency” as a new parameter
“Frequency” is a function to change the frequency of the motor built into the servo. By changing the frequency, the servo feel changes. When lowering the frequency the servo operation becomes active and the servo will move aggressively. The higher the frequency, the smoother the servo will move. You can select your favorite characteristics while changing the settings.

Compatible with PWM Systems
The Grasper2 servo will function with standard transmitters as well. However, the communication processing time between the receiver and the servo is compressed to 1/4. This compressed communication will lead to a different feel when compared to serial input.

Serial / HCS / normal mode switching method.
The servo automatically switches depending on the port connected to the receiver. No additional options are required for mode setting. For serial use, connect it to the B/S port of KR-420XT. When using with HCS, the servo can be used by connecting to channels 1 to 4 as set in HCS. For normal mode, the servo would be plugged into the port as instructed for that radio.

• Brushless motor
• Reinforced stainless steel final gear
• Hard anodized aluminum gear
• Dual ball bearings
• Hard servo gear shaft
• Aluminum top case
• Aluminum heat sink middle case
• Gold plated connector
• Serial Compatible
• HCS Compatible

Specifications:

• Voltage: 6.0-7.4V DC
• Speed:
• 6.0V: 0.12sec/60deg
• 7.4V: 0.09sec/60deg
• 8.4V: 0.08sec/60deg
• Torque:
• 6.0V: 458.28oz-in (33.0kg-cm)
• 7.4V: 555.49oz-in (40.0kg-cm)
• 8.4V: 611.04oz-in (44.0kg-cm)
• Dimensions: 1.59×1.47×0.78in (40.4×37.5x20mm)
• Weight: 2.69oz (76.5g)

Includes:

• (1) BSx4S “Grasper STD” High Speed Brushless Servo

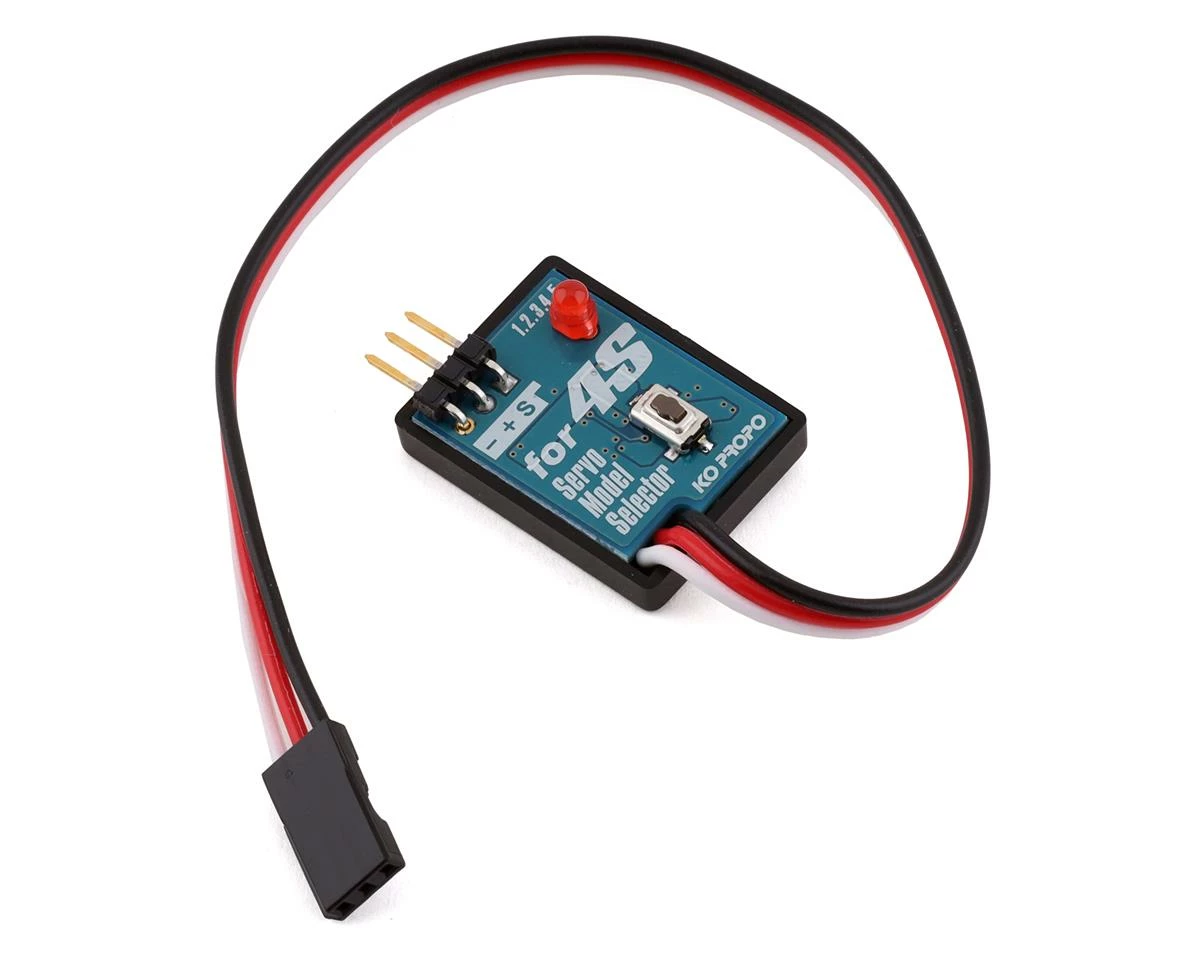

• (1) Selector4s Programming card

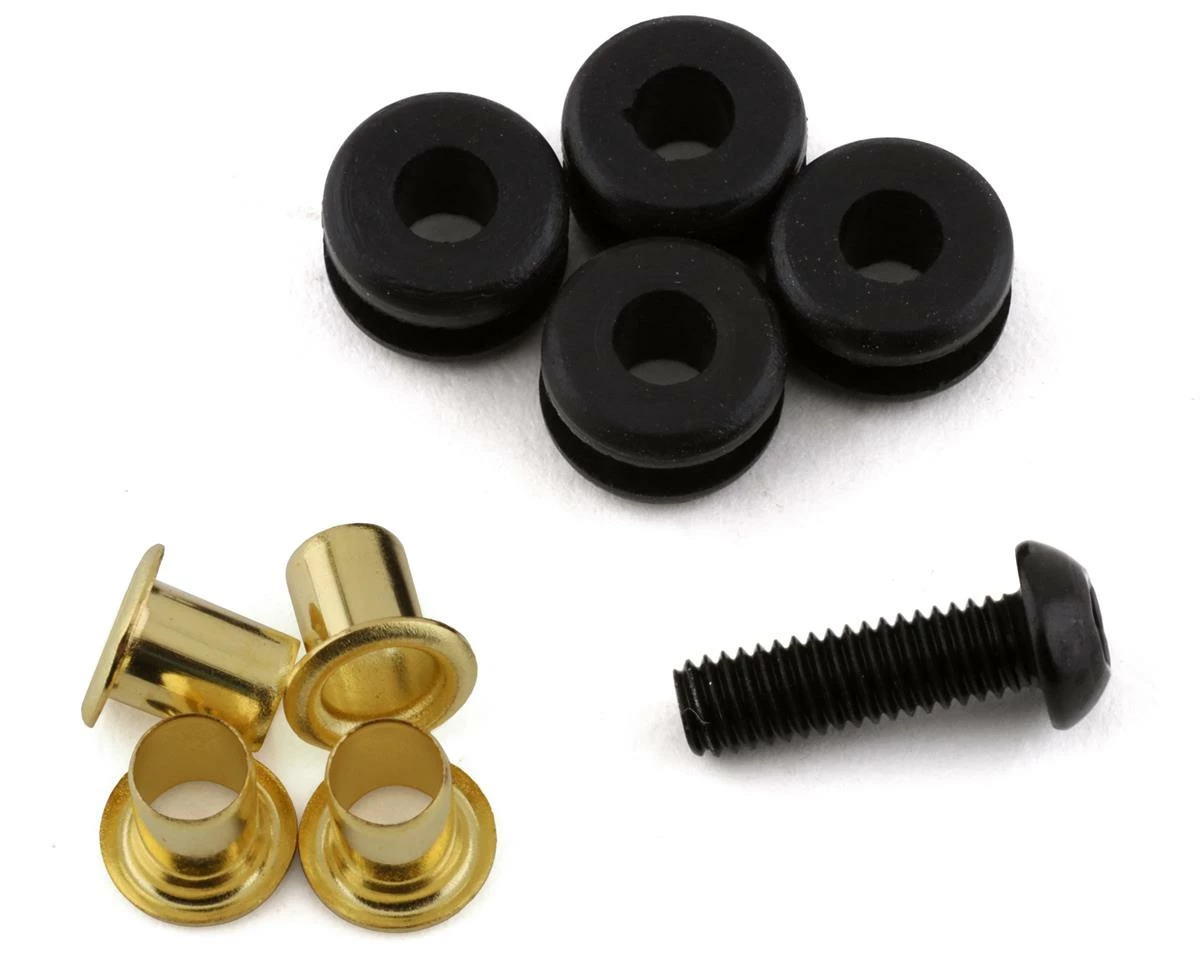

• (4) Grommets
• (4) Eyelets
• (1) Servo Horn Screw
