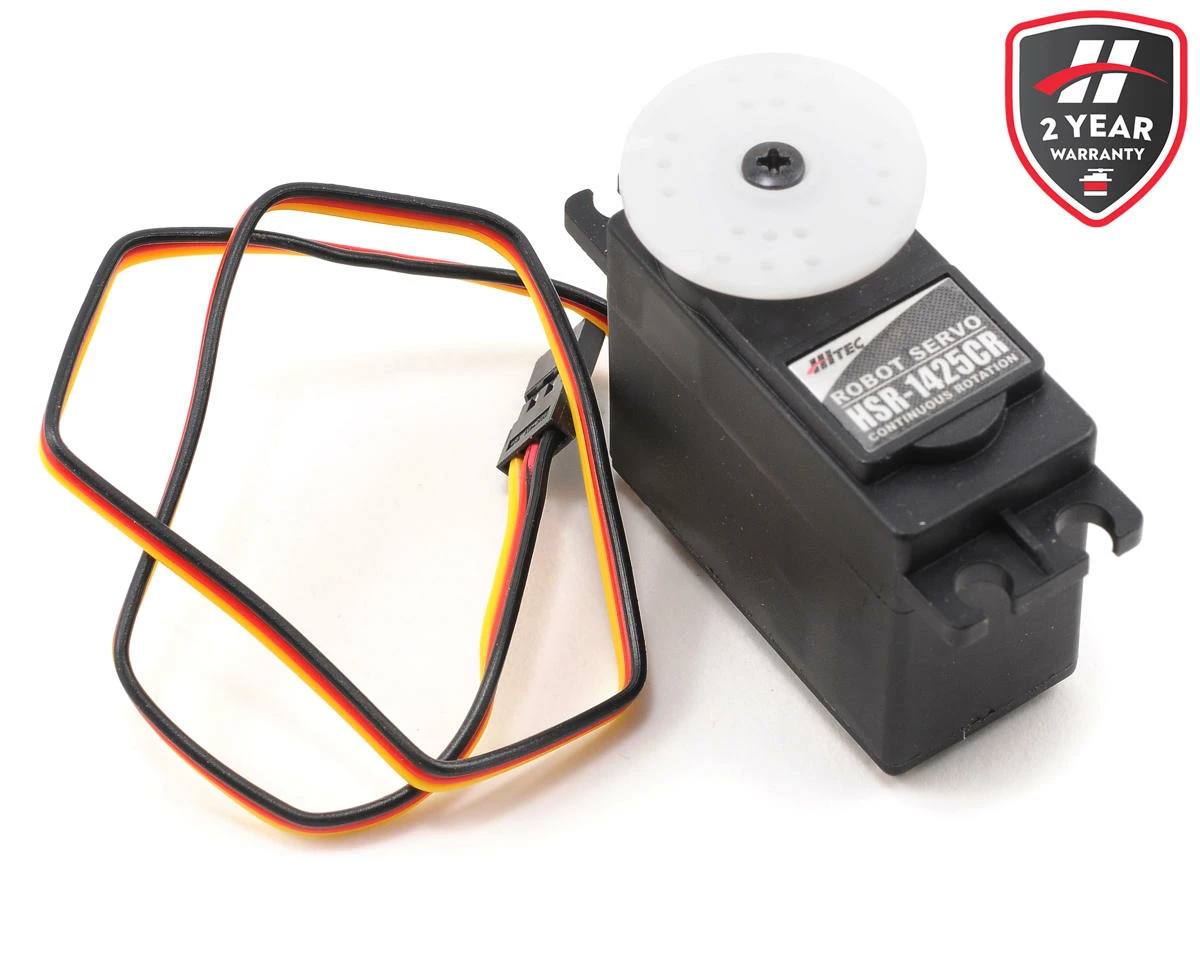

Hitec HSR-1425CR Continuous Rotation Robot Servo

Hitec HSR-1425CR Continuous Rotation Robot Servo - Image 2

Hitec HSR-1425CR Continuous Rotation Robot Servo - Image 3

Hitec HSR-1425CR Continuous Rotation Robot Servo

Original price was: $21.99.Current price is: $15.39.

SKU: 30742 Categories: Cars & Trucks, Continuous Rotation, Servos Tag: Hitec

Your questions, our prompt answers.
Excellent customer service online in a timely manner
Discover a world of quality products.
No Compromise on Quality

Description
Reviews (0)

The HSR-1425CR is the continuous rotation (non-proprtional) version of the HS-425HB ideal for robotic applications. This servo has a universal type connector.

Specifications:

Operating Voltage Range (Volts DC): 4.8V ~ 6.0V

Speed (RPM): 43 ~ 52

Maximum Torque Range oz. / in.: 39 ~ 47

Maximum Torque Range kg. / cm.: 2.8 ~ 3.4

Current Draw at Idle: 8 mA

No Load Operating Current Draw: 150 mA

Stall Current Draw: 640 mA

Dead Band Width: 10 µs

Dimensions (Inches): 1.59 x 0.77 x 1.44

Dimensions (Metric): 40.6 x 19.8 x 36.6

Weight (Ounces): 1.47

Weight (Gram): 41.7

Circuit Type: HT7003 Analog SMT

Motor Type: 3 Pole Metal Brush Ferrite

Gear Material: Nylon

Bearing Type: Dual Ball Bearing

Output Shaft (type / Ømm): Standard 24

Case Material: Plastic

Connector Gauge (AWG) / Strand Count: 25 / 40

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

This product was added to our catalog on November 6, 2008
