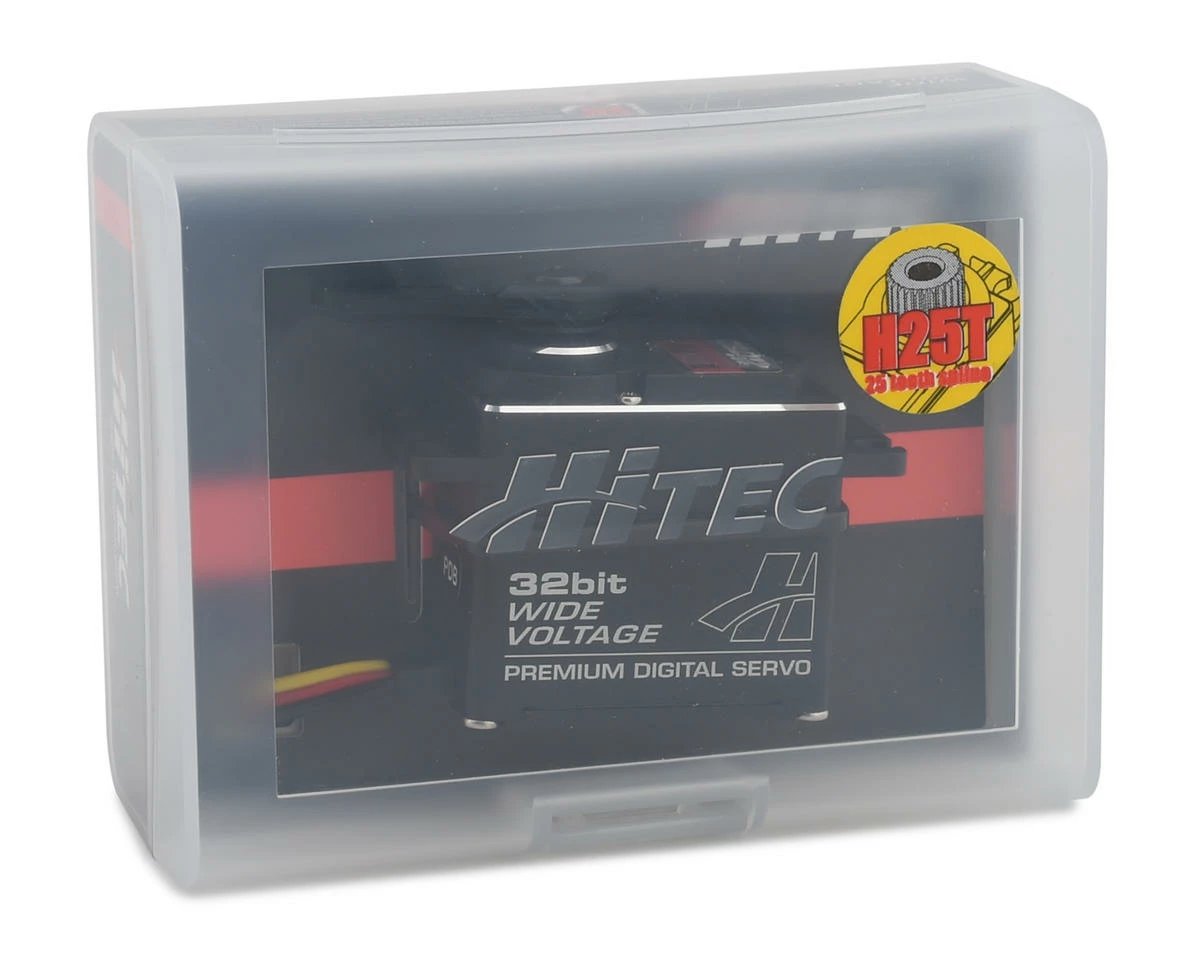

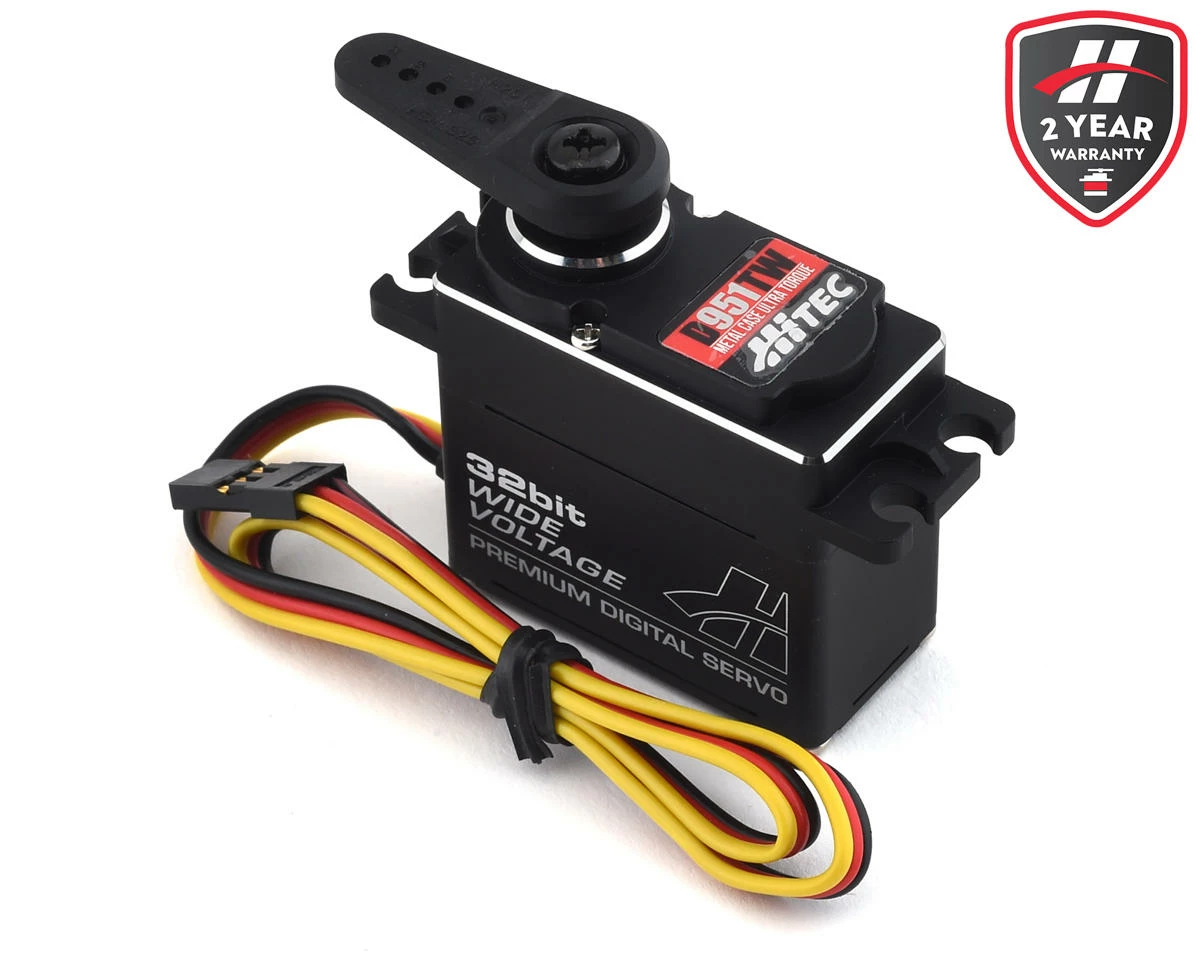

Hitec D951TW D-Series Ultra Torque Titanium Gear Digital Servo (High Voltage)

D951TW D-Series Ultra Torque Titanium Gear Digital Servo sets new standards for advanced, programmable technology. Powered by Hitec’s 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with Hitec’s extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases.

• High Response Circuitry
• Wide Voltage Capabilities
• 32-Bit MCU Technology
• Full Programmability
• Smart Sense Technology for Servo Analytics
• 25-Tooth Output Spline

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V

Speed (Second @ 60°): 0.23 ~ 0.17 ~ 0.14

Maximum Torque Range oz./in.: 292 ~ 403 ~ 486

Maximum Torque Range kg./cm.: 21.0 ~ 29.0 ~ 35.0

Current Draw at Idle: 30 mA

No Load Operating Current Draw: 500 mA

Stall Current Draw: 6,200 mA

Dead Band Width: 1 µs

Dimensions (Inches): 1.57 x 0.79 x 1.50

Dimensions (Metric): 40.0 x 20.0 x 38.0

Weight (Ounces): 2.4

Weight (Gram): 68.0

Circuit Type: 32bit Programable Digital

Motor Type: Coreless Metal Brush

Gear Material: Titanium

Bearing Type: Dual Ball Bearing

Case Material: Aluminum

Dust/Water Resistance Splash Proof: Yes

Connector Gauge (AWG)/Strand Count: 20/80

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
