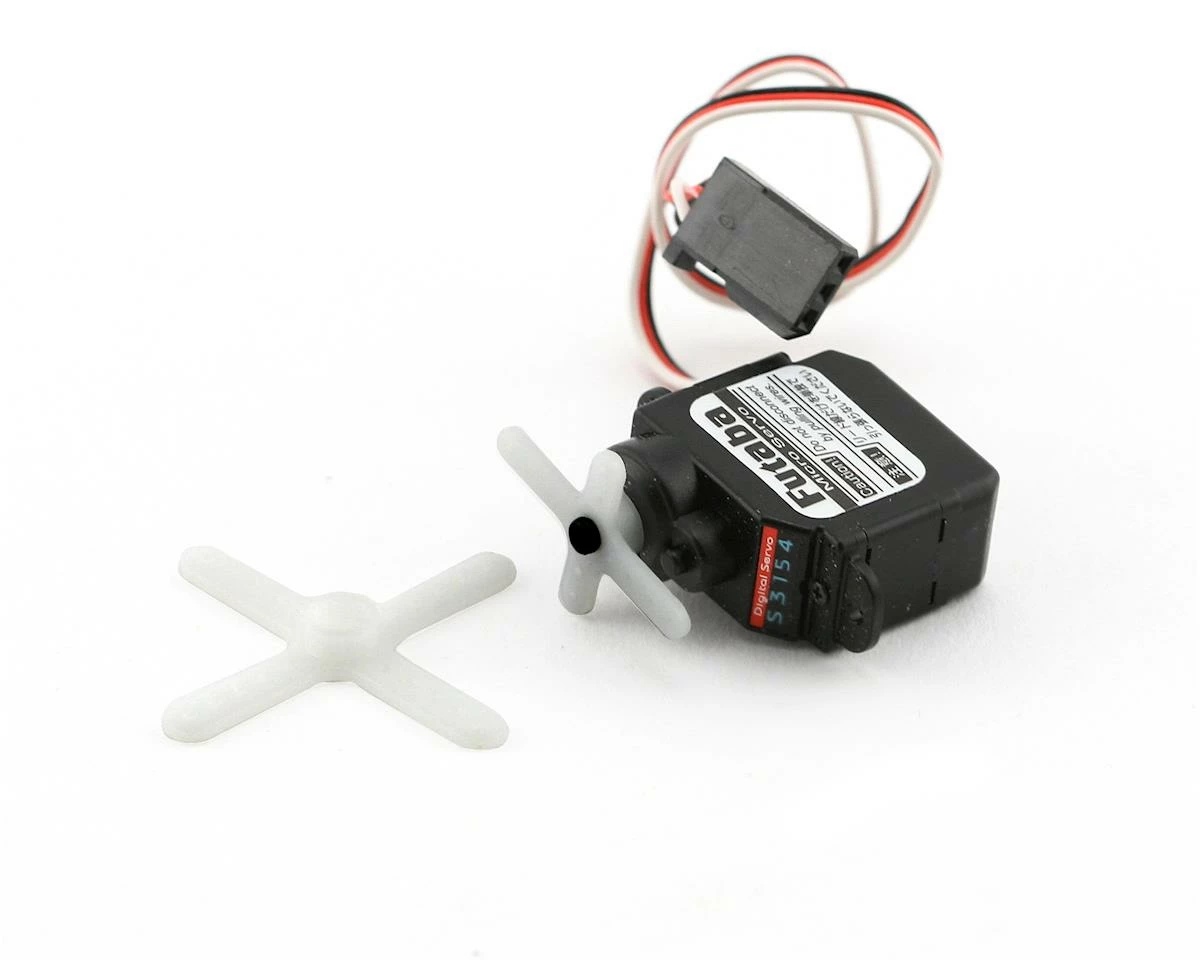

FUTABA S3154 Digital High Torque Micro Servo

This is the Futaba S3154 Digital High-Torque, High Speed Micro Servo for helicopter and airplane use and comes with “J” connector pre-installed. Precision fixed-wing and helicopter flying requires precise, high-tech servos, and we are answering the call with new digital servos that reach full power immediately. They feature high-capacity, high-current wire for low resistance while maintaining standard servo dimensions and light weight so you can mount them almost anywhere.

Specifications:

• Speed: .10 sec/60 degrees @ 4.8V – .09 Sec/60 Degrees @ 6.0V
• Torque: 20.8 oz-in @ 4.8V – 23.5 oz-in @ 6.0V
• Weight: 0.27 oz (7.8grams)
• Length: 0.86″ (21.8mm)
• Width: 0.43″ (11mm)
• Height: 0.78″ (19.8mm)

This product was added to our catalog on October 31, 2007
