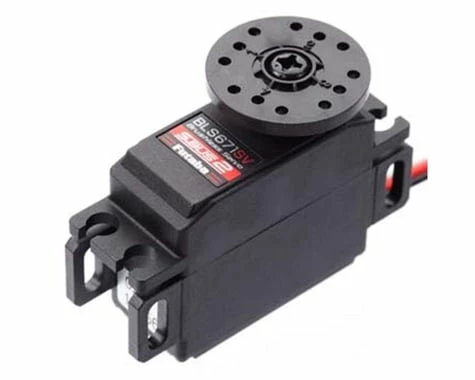

FUTABA BLS671SV S.Bus2 Mini 1/12 High Voltage Servo

This is the Futaba BLS671SV S.Bus2 Mini 1/12 High Voltage Servo, designed to be used with models requiring high speed and high torque. This brushless motor offers incredible holding power and five times longer life than servos equipped with brushed motors. This model is programmable and compatible with S.Bus and S.Bus2.

Torque: 115.3 oz-in (8.3 kg-cm) @ 7.4V

102.8 oz-in (7.4 kg-cm) @ 6.6V

Speed: 0.10 sec/60° @ 7.4V

0.11 sec/60° @ 6.6V

Dimensions: 1.30 x 0.59 x 1.07″ (33 x 15 x 27.1mm)

Weight: 0.99 oz (28 g)

Power Requirements: DC 6V to 7.4V

Horn Screw Size: 3x6mm, order FUTM2291 if extra horn screws are

needed

Dead Band Degree: 0.30

Damper Factor: 80

Stretcher Gain: 2

Boost: 5

Neutral Offset Degree: 0

Travel Adjust Percentage: 100%

Reverse (Normal/Reverse): Nor

Stop Mode (Free/Hold): Free

Buzzer (On/Off): Off

Smoother (On/Off): On

Boost (On/Off): Off

Soft Start: 3.0

• (1) HV BLS671SV HS S.Bus2 Mini Servo with Instructions
• (1) 0.83″ (21mm) Round Horn
• (1) 1.5″ (39mm) Four Point Horn
• (1) 1.2″ (32mm) Six Point Horn
• (4)Grommets
• (4) Eyelets
• (4) Mounting Screws
