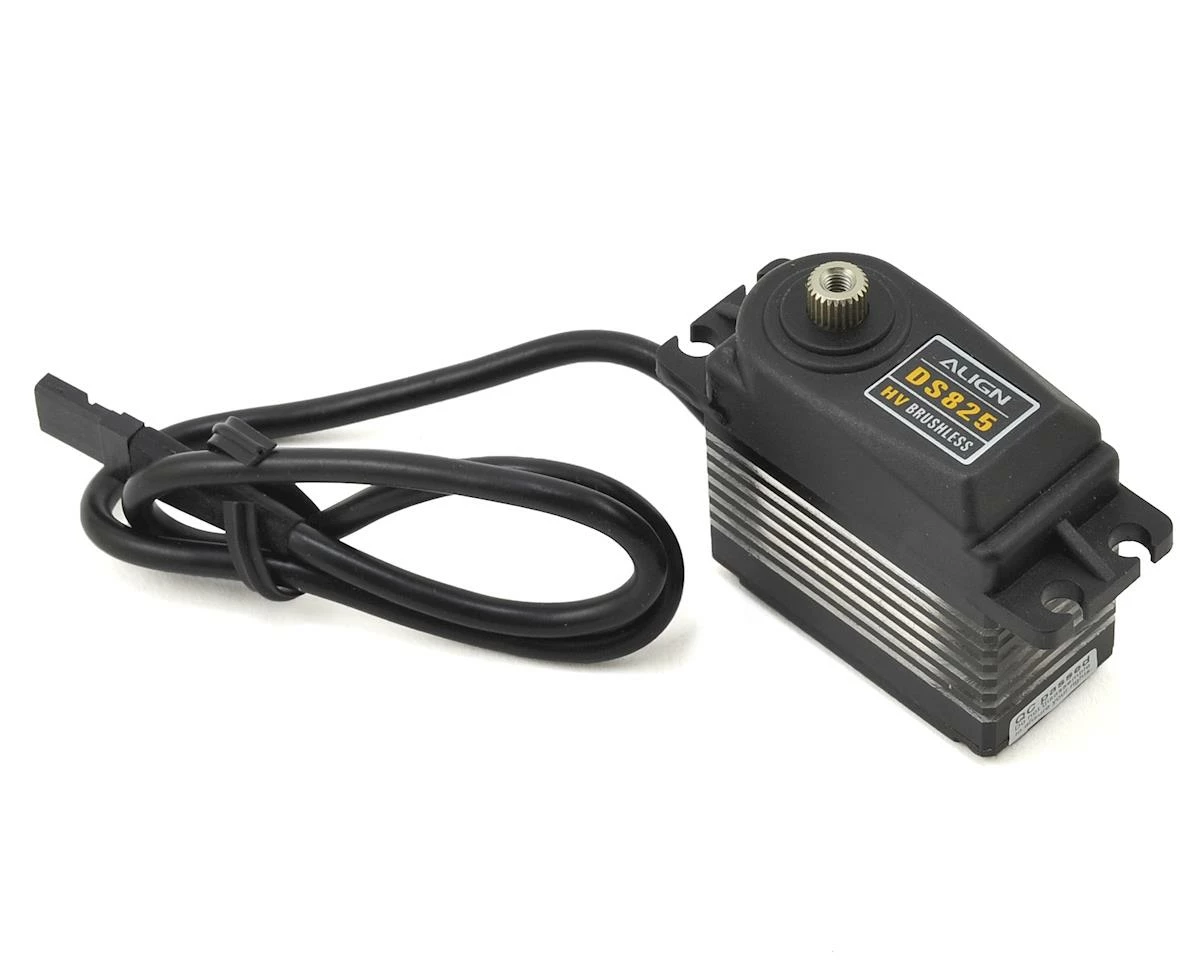

ALIGN DS825 High Voltage Brushless Tail Servo

The Align DS825M High Voltage Brushless Servo is utilized for 550-800 sized helicopters on tail applications. Featuring a high torque & efficient brushless motor, the Align series of Brushless servos will provide incredible performance and reliable performance for countless hours of operation.

Specifications:
Torque: 7.4V: 138 oz/in (10kg.cm) | 8.4V: 173 oz/in (12.5kg.cm)
Speed: 7.4V: 0.03 sec/60 degrees | 8.4V: 0.02 sec/60 degrees
Input Voltage: 6v-8.4v
Temperature Range: -20*C – 60*C
Dimensions: 40x20x39mmm (LxWxH)
Weight: 72g

This product was added to our catalog on May 17, 2017
